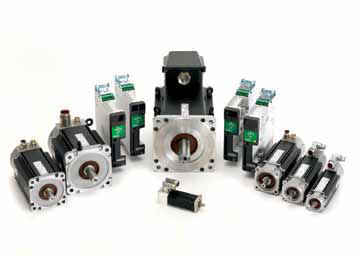

Unimotor FM Servo Motor List
|
|
230VAC Non-Braked Motors
|
Stall Torque
|
Speed
(rpm) |
Part # | Weight
(lbs) |
|
| (lb - in) | (Nm) | |||
| 14.6 | 1.65 | 3000 | 055E2C300BACRA063110 | 4.0 |
| 14.6 | 1.65 | 6000 | 055E2C600BACRA063110 | 4.0 |
| 10.6 | 1.2 | 4000 | 075E2A400BACAA075110 | 7.9 |
| 19.5 | 2.2 | 3000 | 075E2B300BACAA075140 | 9.7 |
| 19.5 | 2.2 | 4000 | 075E2B400BACAA075140 | 9.7 |
| 27.4 | 3.1 | 4000 | 075E2C400BACAA075140 | 11.5 |
| 34.5 | 3.9 | 3000 | 075E2D300BACAA075140 | 13.2 |
| 38.1 | 4.3 | 3000 | 095E2B300BACAA100190 | 13.9 |
| 38.1 | 4.3 | 4000 | 095E2B400BACAA100190 | 13.9 |
| 66.4 | 7.5 | 3000 | 095E2D300BACAA100190 | 19.2 |
| 66.4 | 7.5 | 4000 | 095E2D400BACAA100190 | 19.2 |
| 79.7 | 9 | 3000 | 095E2E300BACAA100190 | 21.8 |
| 83.2 | 9.4 | 3000 | 115E2C300BACAA115190 | 25.6 |
| 109.7 | 12.4 | 3000 | 115E2D300BACAA115240 | 29.8 |
| 135.4 | 15.3 | 3000 | 115E2E300BACAA115240 | 33.9 |
| 95.6 | 10.80 | 3000 | 142E2B300BACAA165240 | 29.3 |
460VAC Non-Braked Motors
|
Stall Torque
|
Speed
(rpm) |
Part # | Weight
(lbs) |
|
| (lb - in) | (Nm) | |||
| 14.6 | 1.65 | 3000 | 055U2C300BACRA063110 | 4.0 |
| 14.6 | 1.65 | 6000 | 055U2C600BACRA063110 | 4.0 |
| 19.5 | 2.2 | 3000 | 075U2B300BACAA075140 | 9.7 |
| 19.5 | 2.2 | 4000 | 075U2B400BACAA075140 | 9.7 |
| 34.5 | 3.9 | 3000 | 075U2D300BACAA075140 | 13.2 |
| 38.1 | 4.3 | 3000 | 095U2B300BACAA100190 | 13.9 |
| 38.1 | 4.3 | 4000 | 095U2B400BACAA100190 | 13.9 |
| 66.4 | 7.5 | 3000 | 095U2D300BACAA100190 | 19.2 |
| 79.7 | 9 | 4000 | 095U2E400BACAA100190 | 21.8 |
| 58.4 | 6.6 | 3000 | 115U2B300BACAA115190 | 21.4 |
| 109.7 | 12.4 | 3000 | 115U2D300BACAA115240 | 29.8 |
| 135.4 | 15.3 | 3000 | 115U2E300BACAA115240 | 33.9 |
| 95.6 | 10.8 | 3000 | 115E2C300BACAA115190 | 29.3 |
| 135.4 | 15.3 | 3000 | 142U2C300BACAA115240 | 35.5 |
| 175.2 | 19.8 | 3000 | 115E2E300BACAA165240 | 41.7 |
| 207.1 | 23.4 | 3000 | 142U2E300BACAA165240 | 47.8 |
| 363.7 | 41.1 | 3000 | 190U2D300BACAA215320 | 74.7 |
FM Motor Fan Kits
|
DESCRIPTION
|
PART # |
| 075 FM motor fan box | 075FB21 |
| 095 FM motor fan box | 095FB21 |
| 115 FM motor fan box | 115FB21 |
| 142 FM motor fan box | 142FB21 |
| 190 FM motor fan box | 190FB21 |
|
FM motor fan kits are intended to help keep the motor running cool and do not increase motor power rating. |
|
Connectors
|
DESCRIPTION
|
PART # |
| Spare Heidenhain Sincos incremental encoder feedback mating connector: 75-190 frame motors | IM/0022/KI |
| Spare Sick/Stegmann Sincos or resolver feedback mating connector: for 75-190 frame motors | IM/0023/KI |
| Feedback Bulkhead Connector | 7579160 |
| Spare power mating connector: for 75-142 frame motors | IM/0039/KI |
| Spare power mating connector: for Unimotor FM 190A-D or Unimotor Classic 190A&B frame motors, rated at 54 Amps | IM/0053/KI |
| Spare power mating connector: for Unimotor FM 190E-H or Unimotor Classic 190C&D frame motors, rated at 70 Amps | IM/0054/KI |
FM Motors
| Motor Model Number | Motor Description |
| 075E2A400BACAA075110 | Unimotor FM Servo Motor, 230VAC, 75mm Frame, 10.6 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder |
| 075E2A400BACAA075110 | Unimotor FM Servo Motor, 230VAC, 75mm Frame, 10.6 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder |
| 075E2A401BACAA075110 | Unimotor FM Servo Motor, 230VAC, 75mm Frame, 10.6 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
| 075E2B400BACAA075140 | Unimotor FM Servo Motor, 230VAC, 75mm Frame, 19.5 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder |
| 075E2B401BACAA075140 | Unimotor FM Servo Motor, 230VAC, 75mm Frame, 19.5 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
| 075E2C400BACAA075140 | Unimotor FM Servo Motor, 230VAC, 75mm Frame, 27.4 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder |
| 075E2C401BACAA075140 | Unimotor FM Servo Motor, 230VAC, 75mm Frame, 27.4 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
| 075E2D300BACAA075140 | Unimotor FM Servo Motor, 230VAC, 75mm Frame, 34.5 lb-in Cont. Stall Torque, 3000RPM Max Speed, Connectorized, Incremental Encoder |
| 075E2D301BACAA075140 | Unimotor FM Servo Motor, 230VAC, 75mm Frame, 34.5 lb-in Cont. Stall Torque, 3000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
| 075E2D400BACAA075140 | Unimotor FM Servo Motor, 230VAC, 75mm Frame, 34.5 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder |
| 075E2D401BACAA075140 | Unimotor FM Servo Motor, 230VAC, 75mm Frame, 34.5 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
| 075U2A400BACAA075110 | Unimotor FM Servo Motor, 460VAC, 75mm Frame, 10.6 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder |
| 075U2A401BACAA075110 | Unimotor FM Servo Motor, 460VAC, 75mm Frame, 10.6 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
| 075U2B400BACAA075140 | Unimotor FM Servo Motor, 460VAC, 75mm Frame, 19.5 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder |
| 075U2B401BACAA075140 | Unimotor FM Servo Motor, 460VAC, 75mm Frame, 19.5 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
| 075U2C400BACAA075140 | Unimotor FM Servo Motor, 460VAC, 75mm Frame, 27.4 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder |
| 075U2C401BACAA075140 | Unimotor FM Servo Motor, 460VAC, 75mm Frame, 27.4 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
| 075U2D400BACAA075140 | Unimotor FM Servo Motor, 460VAC, 75mm Frame, 34.5 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder |
| 075U2D401BACAA075140 | Unimotor FM Servo Motor, 460VAC, 75mm Frame, 34.5 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
| 095E2A400BACAA100140 | Unimotor FM Servo Motor, 230VAC, 95mm Frame, 20.4 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder |
| 095E2A401BACAA100140 | Unimotor FM Servo Motor, 230VAC, 95mm Frame, 20.4 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
| 095E2B400BACAA100190 | Unimotor FM Servo Motor, 230VAC, 95mm Frame, 38.1 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder |
| 095E2B401BACAA100190 | Unimotor FM Servo Motor, 230VAC, 95mm Frame, 38.1 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
| 095E2C400BACAA100190 | Unimotor FM Servo Motor, 230VAC, 95mm Frame, 52.2 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder |
| 095E2C401BACAA100190 | Unimotor FM Servo Motor, 230VAC, 95mm Frame, 52.2 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
| 095E2D300BACAA100190 | Unimotor FM Servo Motor, 230VAC, 95mm Frame, 66.4 lb-in Cont. Stall Torque, 3000RPM Max Speed, Connectorized, Incremental Encoder |
| 095E2D301BACAA100190 | Unimotor FM Servo Motor, 230VAC, 95mm Frame, 66.4 lb-in Cont. Stall Torque, 3000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
| 095E2D400BACAA100190 | Unimotor FM Servo Motor, 230VAC, 95mm Frame, 66.4 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder |
| 095E2D401BACAA100190 | Unimotor FM Servo Motor, 230VAC, 95mm Frame, 66.4 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
| 095E2E300BACAA100190 | Unimotor FM Servo Motor, 230VAC, 95mm Frame, 79.7 lb-in Cont. Stall Torque, 3000RPM Max Speed, Connectorized, Incremental Encoder |
| 095E2E301BACAA100190 | Unimotor FM Servo Motor, 230VAC, 95mm Frame, 79.7 lb-in Cont. Stall Torque, 3000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
| 095E2E400BACAA100190 | Unimotor FM Servo Motor, 230VAC, 95mm Frame, 50.4 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder |
| 095E2E401BACAA100190 | Unimotor FM Servo Motor, 230VAC, 95mm Frame, 50.4 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
| 095U2A400BACAA100140 | Unimotor FM Servo Motor, 460VAC, 95mm Frame, 20.4 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder |
| 095U2A401BACAA100140 | Unimotor FM Servo Motor, 460VAC, 95mm Frame, 20.4 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
| 095U2B400BACAA100190 | Unimotor FM Servo Motor, 460VAC, 95mm Frame, 38.1 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder |
| 095U2B401BACAA100190 | Unimotor FM Servo Motor, 460VAC, 95mm Frame, 38.1 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
| 095U2C400BACAA100190 | Unimotor FM Servo Motor, 460VAC, 95mm Frame, 52.2 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder |
| 095U2C401BACAA100190 | Unimotor FM Servo Motor, 460VAC, 95mm Frame, 52.2 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
| 095U2D400BACAA100190 | Unimotor FM Servo Motor, 460VAC, 95mm Frame, 66.4 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder |
| 095U2D401BACAA100190 | Unimotor FM Servo Motor, 460VAC, 95mm Frame, 66.4 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
| 095U2E400BACAA100190 | Unimotor FM Servo Motor, 460VAC, 95mm Frame, 79.7 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder |
| 095U2E401BACAA100190 | Unimotor FM Servo Motor, 460VAC, 95mm Frame, 79.7 lb-in Cont. Stall Torque, 4000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
| 115E2A300BACAA115190 | Unimotor FM Servo Motor, 230VAC, 115mm Frame, 31.0 lb-in Cont. Stall Torque, 3000RPM Max Speed, Connectorized, Incremental Encoder |
| 115E2A301BACAA115190 | Unimotor FM Servo Motor, 230VAC, 115mm Frame, 31.0 lb-in Cont. Stall Torque, 3000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
| 115E2B300BACAA115190 | Unimotor FM Servo Motor, 230VAC, 115mm Frame, 58.4 lb-in Cont. Stall Torque, 3000RPM Max Speed, Connectorized, Incremental Encoder |
| 115E2B301BACAA115190 | Unimotor FM Servo Motor, 230VAC, 115mm Frame, 58.4 lb-in Cont. Stall Torque, 3000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
| 115E2C300BACAA115190 | Unimotor FM Servo Motor, 230VAC, 115mm Frame, 83.2 lb-in Cont. Stall Torque, 3000RPM Max Speed, Connectorized, Incremental Encoder |
| 115E2C301BACAA115190 | Unimotor FM Servo Motor, 230VAC, 115mm Frame, 83.2 lb-in Cont. Stall Torque, 3000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
| 115E2D300BACAA115240 | Unimotor FM Servo Motor, 230VAC, 115mm Frame, 109.7 lb-in Cont. Stall Torque, 3000RPM Max Speed, Connectorized, Incremental Encoder |
| 115E2D301BACAA115240 | Unimotor FM Servo Motor, 230VAC, 115mm Frame, 109.7 lb-in Cont. Stall Torque, 3000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
| 115E2E300BACAA115240 | Unimotor FM Servo Motor, 230VAC, 115mm Frame, 135.4 lb-in Cont. Stall Torque, 3000RPM Max Speed, Connectorized, Incremental Encoder |
| 115E2E301BACAA115240 | Unimotor FM Servo Motor, 230VAC, 115mm Frame, 135.4 lb-in Cont. Stall Torque, 3000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
| 115U2A300BACAA115190 | Unimotor FM Servo Motor, 460VAC, 115mm Frame, 31.0 lb-in Cont. Stall Torque, 3000RPM Max Speed, Connectorized, Incremental Encoder |
| 115U2A301BACAA115190 | Unimotor FM Servo Motor, 460VAC, 115mm Frame, 31.0 lb-in Cont. Stall Torque, 3000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
| 115U2B300BACAA115190 | Unimotor FM Servo Motor, 460VAC, 115mm Frame, 58.4 lb-in Cont. Stall Torque, 3000RPM Max Speed, Connectorized, Incremental Encoder |
| 115U2B301BACAA115190 | Unimotor FM Servo Motor, 460VAC, 115mm Frame, 58.4 lb-in Cont. Stall Torque, 3000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
| 115U2C300BACAA115190 | Unimotor FM Servo Motor, 460VAC, 115mm Frame, 83.2 lb-in Cont. Stall Torque, 3000RPM Max Speed, Connectorized, Incremental Encoder |
| 115U2C301BACAA115190 | Unimotor FM Servo Motor, 460VAC, 115mm Frame, 83.2 lb-in Cont. Stall Torque, 3000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
| 115U2D300BACAA115240 | Unimotor FM Servo Motor, 460VAC, 115mm Frame, 109.7 lb-in Cont. Stall Torque, 3000RPM Max Speed, Connectorized, Incremental Encoder |
| 115U2D301BACAA115240 | Unimotor FM Servo Motor, 460VAC, 115mm Frame, 109.7 lb-in Cont. Stall Torque, 3000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
| 115U2E300BACAA115240 | Unimotor FM Servo Motor, 460VAC, 115mm Frame, 135.4 lb-in Cont. Stall Torque, 3000RPM Max Speed, Connectorized, Incremental Encoder |
| 115U2E301BACAA115240 | Unimotor FM Servo Motor, 460VAC, 115mm Frame, 135.4 lb-in Cont. Stall Torque, 3000RPM Max Speed, Connectorized, Incremental Encoder, 24VDC Brake |
FM Motor Fan Kits
|
DESCRIPTION
|
PART # |
| 075 FM motor fan box | 075FB21 |
| 095 FM motor fan box | 095FB21 |
| 115 FM motor fan box | 115FB21 |
| 142 FM motor fan box | 142FB21 |
| 190 FM motor fan box | 190FB21 |
|
FM motor fan kits are intended to help keep the motor running cool and do not increase motor power rating. |
|
Connectors
|
DESCRIPTION
|
PART # |
| Spare Heidenhain Sincos incremental encoder feedback mating connector: 75-190 frame motors | IM/0022/KI |
| Spare Sick/Stegmann Sincos or resolver feedback mating connector: for 75-190 frame motors | IM/0023/KI |
| Feedback Bulkhead Connector | 7579160 |
| Spare power mating connector: for 75-142 frame motors | IM/0039/KI |
| Spare power mating connector: for Unimotor FM 190A-D or Unimotor Classic 190A&B frame motors, rated at 54 Amps | IM/0053/KI |
| Spare power mating connector: for Unimotor FM 190E-H or Unimotor Classic 190C&D frame motors, rated at 70 Amps | IM/0054/KI |
