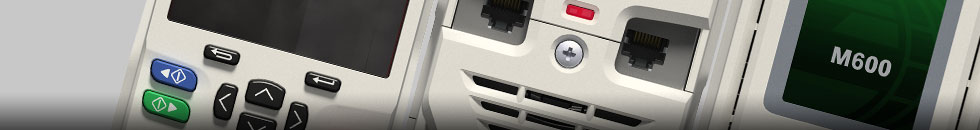

Unidrive "M600"  AC Open/Closed Loop Induction Motor Drive with Open Loop PM Motor Control and Single Safe Torque off Channel

Unidrive M600 AC drive - High performance drive for induction and sensor-less permanent magnet motors

Single Drives:

1.0hp – 400hp (0.75kW – 250KW) Heavy Duty

1.0hp – 450hp (0.75kW – 280KW) Normal Duty

Modular Drives:

1.0hp – 4200hp (0.75kW – 2.8MW)

230V / 460V / 575V / 690V

The Unidrive M600 is the perfect choice for applications that require high performance open-loop control of induction or permanent magnet motors. SI-Encoder option modules are available for applications that require more precise closed-loop velocity and digital lock/frequency following of induction motors.

  • M600 adds enhanced motor control, higher performance onboard PLC with CODESYS programming and greater system expansion capability

M600 delivers increased machine performance with sensor-less induction and sensor-less permanent magnet motor control, for dynamic and efficient machine operation. An optional encoder port can be used for precise closed loop velocity applications and digital lock/frequency following. Additional I/O, global Fieldbus communications and encoder feedback options maximize system connectivity and flexibility

Features

Enhanced onboard PLC

  • Onboard CODESYS based PLC with a real-time task can be used for basic logic control, speed following and digital lock to enhance drive application capability

Maximize productivity with high performance control with all AC motors

  • Advanced RFC control algorithm for maximum stability and control, especially with high power motors

  • High bandwidth motor control algorithm with 62.5 μs current loop update rates

  • 200% motor overload for heavy industrial machinery applications

Save energy

  • High performance control of open loop energy efficient industrial permanent magnet motors , with dynamic control and high starting torque

  • Low losses up to 98% efficient

  • Low power standby mode

Reduce machine size and cost

  • Compact drive dimensions, among the smallest in class at every power rating

  • Onboard programmable automation for simple applications

Flexible integration with automation systems

  • Fit up to three SI modules to add speed feedback, I/O and fieldbus communications

Easy-to-use interface

  • Optional plain text LCD keypad with up to 4 lines of text

Typical applications

  • Speed control with high starting torque for extruders, slitters, material transport, compressors, manufacturing cranes, hydraulic replacement, ratio control, gearing, winding (coilers), web handling, metal cutting

Specifications

Key data

  • Heavy Duty rating: 1.0hp – 4200hp (0.75kW – 2.8MW)

  • Supply phases: 3 phase

Standard features


Intelligence:

  • Onboard PLC

  • Digital Lock Control

Onboard comms:

  • RS485

Machine safety:

  • 1 x Safe Torque Off (STO) terminal

Keypad:

  • No keypad as standard

Option slots:

  • 3

Parameter cloning Via:

  • PC tools

  • Smartcard

  • SD card

Voltage ratings

100V (100V - 120V ± 10%)



200V (200V - 240V ± 10%)

X

400V (380V - 480V ± 10%)

X

575V (500V - 575V ± 10%)

X

690V (500V - 690V ± 10%)

X



Control mode

Open loopVector orV/Hz induction motor control

X

Open loop Rotor Flux Control for induction motors (RFC-A)

X

Open loop permanent magnet motor control (RFC-S)

X

Closed loop Rotor Flux Control for induction motors (RFC-A)

Opt

Closed loop permanent magnet motor control (RFC-S)



Active Front End (AFE) power quality convertor

X

SINGLE DRIVES:

frame size

Dimensions (h X w x d)

Weight kg(lb)



mm

in

kg

lb

3

382 x 83 x 200

15.0 x 3.3 x 7.9

4.5 Max

9.9 Max

4

391 x 124 x 200

15.4 x 4.9 x 7.9

6.5

14.3

5

391 x 143 x 200

15.4 x 5.6 x 7.6

7.4

16.3

6

391 x 210 x 227

15.4 x 8.3 x 8.9

14

30.9

7

557 x 270 x 280

21.9 x 10.6 x 11.0

28

61.7

8

803 x 310 x 290

31.6 x 12.2 x 11.4

52

114.6

9*

1108 x 310 x 290

43.6 x 12.2 x 11.4





9†

1069 x 310 x 288

42.1 x 12.2 x 11.3

46

101.4

10†

1069 x 310 x 288

42.1 x 12.2 x 11.3

46

101.4

11*†

1410 x 310 x 310

55.5 x 12.2 x 12.2

63

138.9

All Dimensions include mounting brackets

MODULAR DRIVES:

frame size

Dimensions (h X w x d)

mm

in

INVERTER & RECTIFIER

9A

1108 x 310 x 290

43.62 x 12.21 x 11.4
9E | 9T 1069 x 310 x 290 42.1 x 12.21 x 11.4

10E | 10T

1069 x 310 x 290

42.1 x 12.21 x 11.4

11E | 11T

1242 x 310 x 312

48.9 x 12.2 x 12.3

INVERTER

9D

773 x 310 x 290

30.4 x 12.2 x 11.4

10D

773 x 310 x 290

30.4 x 12.2 x 11.4

11D

863 x 310 x 290

34 x 12.2 x 12.3

RECTIFIER

10A

6 pulse
355 x 310 x 290

6 pulse
13.9 x 12.2 x 11.4

11A | 11T

6 pulse
415 x 310 x 290
12 pulse
415 x 310 x 290

6 pulse
16.3 x 12.2 x 11.4
12 pulse
16.3 x 12.2 x 11.4

Dimensions include mounting brackets

Options

Keypads

 Remote keypad
All the features of the CI-Keypad LCD, but remote mountable. This allows flexible mounting on the outside of a panel and meets IP66 (NEMA 4)

KI-Keypad
Plain text, multi-language LCD keypad with up to 4 lines of text for in depth parameter and data descriptions, for enhanced user experience

KI-Keypad RTC
All the features of the KI-Keypad, but with battery operated realtime clock, allowing accurate time stamping of diagnostics and aiding quick resolution

System Integration Modules - Feedback

 SI-Encoder
Quadrature encoder input interface module.

SI-Universal Encoder*
Encoder input and output interface supporting Quadrature, SinCos, EnDat and SSI encoders.

System Integration Modules - Communications

 SI-PROFIBUS
PROFIBUS interface module

SI-DeviceNet
DeviceNet interface module

SI-CANopen
CANopen interface module supporting various profiles, including several drive profiles

SI-Ethernet
Ethernet module that supports EtherNet/IP and Modbus TCP/IP

SI-PROFINET V2
PROFINET RT interface module

SI-EtherCAT*
EtherCAT interface module

System Integration Modules - Additional I/O

SI-I/O
Extended I/O interface module to increase the number of I/O points on a drive.

System Integration Modules - Safety

 SI-Safety*
An intelligent, programmable module to meet the IEC 61800-5-2/ISO 13849-1 functional safety standard up to SIL3/PLe.

Drive interface units - Back-up

 Smartcard
Smartcard memory device to backup and copy parameter sets and basic PLC programs

SD Card Adaptor
Allows an SD card to be inserted into the Smartcard slot, for parameter backup cloning and application programs.

Drive interface units - Communications

 KI-485 Adaptor
This allows the drive to communicate via RS485. This is commonly used for programming if the drive has no keypad
​CT USB Comms cable
The USB Comms cable allows the drive to connect to a PC for use with Unidrive M's PC tools.





Unidrive M600 Available Sizes

230 VAC, 3-Phase Input and Output, 50/60 Hz Input

Normal Duty
Heavy Duty Base Order Code Dimensions (H x W x D) (in) Weight (lbs)
HP Amps HP Amps
1.5 6.6 1 5 M600-03200050A 15.0 X 3.3 X 7.9 8.8
2 8 1.5 6.6 M600-03200066A
3 11 2 8 M600-03200080A
3 12.7 3 10.6 M600-03200106A
5 18 3 13.7 M600-04200137A 15.4 X 4.9 X 7.9 14.3
7.5 25 5 18.5 M600-04200185A
10 30 7.5 25 M600-05200250A 15.4 X 5.6 X 7.9 16.3
15 50 10 33 M600-06200330A 15.4 X 8.3 X 9.0 30.9
20 58 15 44 M600-06200440A
25 75 20 61 M600-07200610A 21.9 X 10.6 X 11.0 61.7
30 94 25 75 M600-07200750A
40 117 30 83 M600-07200830A
50 149 40 116 M600-08201160A 31.7 X 12.2 X 11.4 114.6
60 180 50 132 M600-08201320A
75 216 60 176 M600-09201760A 43.6 X 12.2 X 11.4 146
100 266 75 219 M600-09202190A
75 216 60 176 M600-09201760E 42.1 X 12.2 X 11.4 101.4
100 266 75 219 M600-09202190E
125 325 100 283 M600-10202830E
150 360 125 300 M600-10203000E



230 VAC, 3-Phase Input and Output, 50/60 Hz Input No Dynamic Braking Transistor

Normal Duty
Heavy Duty Base Order Code Dimensions (H x W x D) (in) Weight (lbs)
HP Amps HP Amps
75 216 60 176 M600-09201760E 42.1 X 12.2 X 11.4 101.4
100 266 75 219 M600-09202190E
125 325 100 283 M600-10202830E
150 360 125 300 M600-10203000E



460 VAC, 3-Phase Input and Output, 50/60 Hz Input

Normal Duty
Heavy Duty Base Order Code Dimensions (H x W x D) (in) Weight (lbs)
HP Amps HP Amps
2 3.4 1 2.5 M600-03400025A 15.0 X 3.3 X 7.9 8.8
2 4.5 1.5 3.1 M600-03400031A
3 6.2 2 4.5 M600-03400045A
5 7.7 3 6.2 M600-03400062A
5 10.4 5 7.8 M600-03400078A
7.5 12.3 5 10 M600-03400100A
10 18.5 10 15 M600-04400150A 15.4 X 4.9X 7.9 14.3
15 24 10 17.2 M600-04400172A
20 30 20 25.4 M600-05400270A 15.4 X 5.6 X 7.9 16.3
20 31 20 30 M600-05400300A
25 38 25 35 M600-06400350A 15.4 X 8.3 x 9.0 30.9
30 48 30 42 M600-06400420A
50 63 30 46 M600-06400470A
60 79 50 66 M600-07400660A 21.9 X 10.6 X 11.00 61.7
75 94 60 77 M600-07400770A
75 112 75 100 M600-07401000A
125 155 100 134 M600-08401340A 31.7 X 12.2 X 11.4 114.6
150 184 125 157 M600-08401570A
150 221 150 180 M600-09402000A 43.6 X 12.2 X 11.4 146.6
200 255 150 211 M600-09402240A
150 221 150 180 M600-09402000E 42.1 X 12.2 X 11.4 101.4
200 255 150 211 M600-09402240E
250 320 200 270 M600-10402700E
300 361 250 307 M600-10403200E
350 437 300 377 M600-11403770E 48.9 X 12.2 X 12.3 138.9
400 487 350 417 M600-11404170E
450 507 400 464 M600-11404640E



460 VAC, 3-Phase Input and Output, 50/60 Hz Input No Dynamic Braking Transistor

Normal Duty
Heavy Duty Base Order Code Dimensions (H x W x D) (in) Weight (lbs)
HP Amps HP Amps
150 221 150 180 M600-09402000E 42.1 X 12.2 X 11.4 101.4
200 255 150 211 M600-09402240E
250 320 200 270 M600-10402700E
300 361 250 307 M600-10403200E
350 437 300 377 M600-11403770E 48.9 X 12.2 X 12.3 138.9
400 487 350 417 M600-11404170E
450 507 400 464 M600-11404640E



575 VAC, 3-Phase Input and Output, 50/60 Hz Input

Normal Duty
Heavy Duty Base Order Code Dimensions (H x W x D) (in) Weight (lbs)
HP Amps HP Amps
3 3.9 2 3 M600-05500030A 15.4 X 5.6 X 7.9 16.3
5 6.1 3 4 M600-05500040A
7.5 10 5 6.9 M600-05500069A
10 12 7.5 10 M600-06500100A 15.4 X 8.3 X 9.0 30.9
15 17 10 15 M600-06500150A
20 22 15 19 M600-06500190A
25 27 20 23 M600-06500230A
30 34 25 29 M600-06500290A
40 43 30 35 M600-06500350A
50 53 40 44 M600-07500440A 21.9 X 10.6 X 11.00 61.7
60 73 50 55 M600-07500550A
75 86 60 63 M600-08500630A 31.7 X 12.2 X 11.4 114.6
100 108 75 86 M600-08500860A
125 125 100 104 M600-09501010A 43.6 X 12.2 X 11.4 146.6
150 150 125 131 M600-09501310A
125 125 100 104 M600-09501040E 42.1 X 12.2 X 11.4 101.4
150 150 125 131 M600-09501310E
200 200 150 152 M600-10501520E
200 200 200 190 M600-10501900E
250 248 200 200 M600-11502000E 48.9 X 12.2 X 12.3 138.9
300 288 250 254 M600-11502540E
350 315 300 285 M600-11502850E



575 VAC, 3-Phase Input and Output, 50/60 Hz Input No Dynamic Braking Transistor

Normal Duty
Heavy Duty Base Order Code Dimensions (H x W x D) (in) Weight (lbs)
HP Amps HP Amps
125 125 100 104 M600-09501040E 42.1 X 12.2 X 11.4 101.4
150 150 125 131 M600-09501310E
200 200 150 152 M600-10501520E
200 200 200 190 M600-10501900E
250 248 200 200 M600-11502000E 48.9 X 12.2 X 12.3 138.9
300 288 250 254 M600-11502540E
350 315 300 285 M600-11502850E



690 VAC, 3-Phase Input and Output, 50/60 Hz Input

Normal Duty
Heavy Duty Base Order Code Dimensions (H x W x D) (in) Weight (lbs)
HP Amps HP Amps
25 23 20 19 M600-07600190A 21.9 X 10.6 X 11.0 61.7
30 30 25 24 M600-07600240A
40 36 30 29 M600-07600290A
50 46 40 38 M600-07600380A
60 52 50 44 M600-07600440A
75 73 60 54 M600-07600540A
100 86 75 63 M600-08600630A 31.7X 12.2 X 11.4 114.6
125 108 100 86 M600-08600860A
150 125 125 104 M600-09601040A 43.6 X 12.2 X 11.4 146.6
175 155 150 131 M600-09601310A
150 125 125 104 M600-09601040E 42.1 X 12.2 X 11.4 101.4
175 155 150 131 M600-09601310E
200 172 175 150 M600-10601500E
250 197 200 178 M600-10601780E
250 225 250 210 M600-11602100E 48.9 X 12.2 X 12.3 138.9
300 275 250 238 M600-11602380E
400 305 300 263 M600-11602630E



690 VAC, 3-Phase Input and Output, 50/60 Hz Input No Dynamic Braking Transistor

Normal Duty
Heavy Duty Base Order Code Dimensions (H x W x D) (in) Weight (lbs)
HP Amps HP Amps
150 125 125 104 M600-09601040E 42.1 X 12.2 X 11.4 101.4
175 155 150 131 M600-09601310E
200 172 175 150 M600-10601500E
250 197 200 178 M600-10601780E
250 225 250 210 M600-11602100E 48.9 X 12.2 X 12.3 138.9
300 275 250 238 M600-11602380E
400 305 300 263 M600-11602630E

Unidrive M600: Open/Closed† Loop Induction Motor Drive with Open Loop PM Motor Control - Single Safe Torque Off Channel

***Models M600-03200050 to 03200106 and M600-03400025 to 03400062 do not include an internal reactor.

†Requires SI-Encoder option module (order separately).

***Keypads are sold separate.

Home / Contact Us / Products / Service / Sales /Supported Product / Powertec Support / Serviced Products / Feedback



Microcon Technologies Inc.

1105 Crestlawn Drive, Unit # D8 & D9

Mississauga, Ontario L4W 1A7 Canada

Tel: (905) 602-4770

Fax: (905) 602-4779

e-mail: sales@microcontechnologies.com

Website: www.microcontechnologies.com
