Tensi-Master Tension Indicator for Cleveland Motion Controls

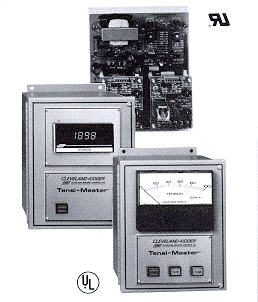

CMC® Cleveland-Kidder® Tensi-Master® Tension Indicators provide transducer excitation and tension readout on web process or wire machinery. When, combined with Cleveland-Kidder® Tension Transducers (load cells), they provide an accurate web tension reading, helping to measure, monitor and control the continuous web process for consistent product quality. Tensi-Master Tension Indicators are available in an enclosed or open panel mounting. Both models are of rugged industrial construction.

Tensi-Master
Tension Indicators

GENERAL DESCRIPTION
TENSI-MASTER indicator systems by Cleveland-Kidder provide the highest degrees of application flexibility available to measure tension in continuous web processes. Features include a single printed circuit board design with easily added option cards. The circuit board may be mounted on a chassis for installation on a panel, or mounted in a standard TENSI-MASTER enclosure.

Analog or digital meters, operator stations and options are selected and installed to complete the TENSI-MASTER indicator system. Options include AC power cord, "MS" electrical connector plate, high and low tension limit detection cards, an isolation amplifier card and Total-Right-Left tension indication.

TENSI-MASTER indicators, when combined with modular TENSI-MASTER transducers, or any other Cleveland-Kidder transducers, provide an accurate reading of web tension to maintain product quality.

FEATURES

Provides transducer excitation and tension readout.
Industrial quality solid state circuitry.
High noise immunity.
8:1 full scale tension calibration range.
Enclosed or Open Panel mounting.
Accessory output 0-10 VDC.
Rugged industrial construction.
Available with options and accessories.
100-115-230 Volt input power select.

PRODUCT BENEFITS

Indication permits tension control for consistent product quality.
The TLD option provides web break and abnormal tension detection without the use of external devices.
High system response using patented, negligible displacement transducers.

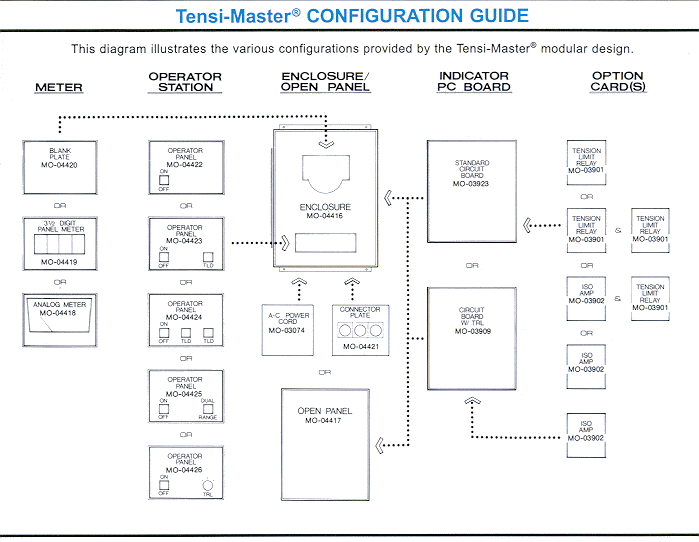

Modular design concept permits maximum flexibility in configuration for specific applications.
Ease of mounting and connector hook-up.
Simple system calibration and start-up.

APPLICATIONS
For use in the measurement of web tension on continuous processing machinery applications such as:

printing
embossing

slitting
coating

cutting
punching

laminating
folding

Typically used in the production of:

paper
cellophane
extensible and photo film

cardboard
rubber

textiles
linoleum

foil

Description	Part Number	Additional Information
Basic Analog Display - 0-100% Scale	MWI-13654-1	Accessory 0-10VDC and 4-20 ma non-isolated tension outputs are provided for use with remote devices. Uses Basic Classic Amplifier (Part #: MWI-13466). Contact Microcon if custom scale is required.
Analog Display - 0-100% Scale - Isolated Outputs	MWI-13654-2	Accessory o-10VDC or 4-20 ma isolated tension outputs are provided for use with remote devices. Uses Isolated Classic Amplifier (Part Number MWI-13467). Contact Microcon if custom scale is required.
Basic Digital Display	MWI-13654-3	Accessory 0-10VDC and 4-20 ma non-isolated tension outputs are provided for use with remote devices, Uses Basic Classic Amplifier (Part Number MWI-13466).
Digital Display-Isolated Outputs	MWI-13654-4	Accessory 0-10VDC or 4-20 ma isolated tension outputs are provided for use with remote devices. Uses Isolated Classic Amplifier (Part Number MWI-13467).
Dual Digital Display	MWI-13654-5	Dual Meter-Required if left or right transducers need to be displayed individually or sum of two pairs needs to be displayed in one enclosure. Accessory 0-10VDC and 4-20 ma isolated outputs are provided for use with remote devices. Uses two Isolated Classic Amplifiers (Part Number MWI-13467)
Extra Large Digital Display - 1.5 Inch high digits	MWI-13654-6	Accessory 0-10VDC and 4-20 ma non-isolated tension outputs are provided for use with remote devices. Uses Basic Classic Amplifier (Part Number MWI-13466)
