Tensi-Master CR
Tension Transducers For Measurement and
Control of Tension in Wire & Narrow Webs

  GENERAL DESCRIPTION

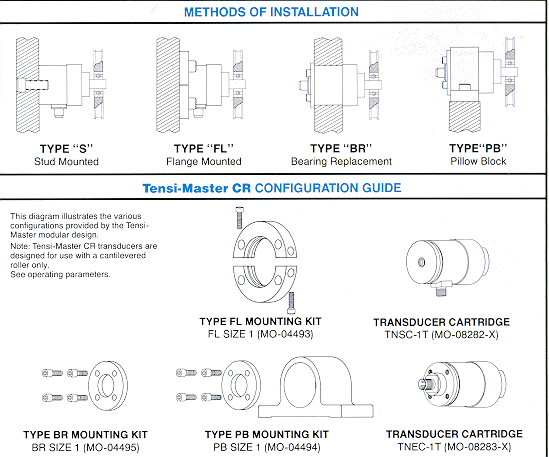

Tensi-Master CR Type TNEC and TNSC Cantilever Tension Transducers are designed to support a customer supplied pulley or narrow roll assembly. Flexibility of installation is accomplished by adding mounting hardware to a basic module to complete the body type. Eight different load ratings are available to allow sensing of tension in wire and narrow webs over an extremely wide range. Versatile transducer orientation capability easily accommodates tension forces applied in any direction.

Tensi-Master CR transducers utilize a cantilevered "twin beam" to render greater sensitivity and response without sacrificing protection from overload and transients common to industrial process machinery. Semiconductor strain gauges are bonded to the beam assembly, and provide a linear output signal as the beam assembly is deflected by the force acting on the pulley or roll.

FEATURES
  • Negligible displacement of "twin beam" design results in:
    * High level, linear output signal
    * High frequency response
    * Overall system stability
  • Heavy duty construction.
  • Built in overload stop.
  • Accommodates customer mounted pulley or roller.
  • Easily oriented at any angle to accommodate all web paths.
  • "MS" type connectors.
  • Wide range of Maximum Working Force ratings.
  • Wide operating temperature range.
  • Corrosion resistant finish and dust seal.

PRODUCT BENEFITS

  • Tension sensing permits indication and control for consistent product quality.
  • Highly responsive for enhanced system performance.
  • Negligible motion maintains proper roll alignment.
  • Ease of mounting reduces necessity of machine modifications.
  • Heavy duty construction and low maintenance design minimize down time.


APPLICATIONS
For use in the measurement of web tension on continuous processing machinery applications such as:

  • printing
  • coating
  • cutting
  • plating
  • laminating
  • embossing

Typically used in the production of:

  • tire cord
  • textiles
  • wire
  • extensible film
  • tape
  • paper
  • foil
  • cellophane
