SM-Options-CAN

CAN Termination

Option Module	Colour	Name	Terminal Information
	Pink	SM-CAN
5-way Terminal	D-type Terminal	Function	Description
1	6	0V	0V external power supply (black)
2	2	CAN-L	Can-L Negative data line )blue)
3	3,5 Shell	Shield	Cable screen (braided shield) connection
4	7	CAN-H	CAN-H Positive data line (white)
5	9	+24V	+24V external power supply (red)

SM-CAN terminal descriptions

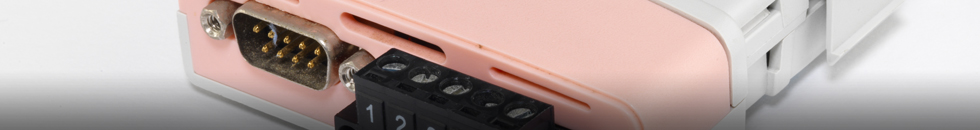

The SM-CAN module has a 9-way D-type connector and a 5-way screw terminal block connector. Either terminal connector can be used for the CAN network connections.
