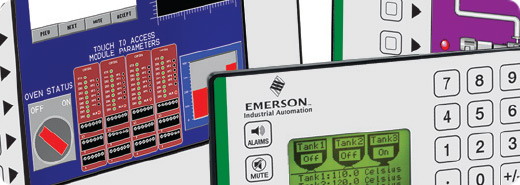

The powerful CTVue HMI line and integrated drivers for Control Technique drives make it easy to integrate HMI with CT drives. The broad offering of CTVue HMI’s are easy to program with the free and easy to use CTVue configurator software. The broad hardware offering also ensures there is a CTVue HMI that balances your price and functionality needs.

Easily create your customized machine interface with free CTVue configurator software!

For small displays, the economical 303L and 303M provide a 3” monochrome graphical LCD display. The 303L is the low cost choice with only one RS485 port. The 303M is full featured with one Ethernet, two RS232, one RS485 and one Compact Flash port.

The Compact Flash port allows for storage and transfer of data from a variety of external data sources using a standard  compact flash card (not included).

• Integrated Control Techniques Drivers

• Remote Web and FTP access

• Powerful Protocol Converter

• USB Programming Port

• Alarming and Data Logging

• Bright TFT Color Display Offerings

• Free Programming Software

• Simple To Use Software

• Flexible Compact Flash Slot

• Security User Levels/Passwords

• Available Front Foil Customization

• Large 4 Mb/8 Mb Onboard Flash Memory

• For Use in Hazardous Locations

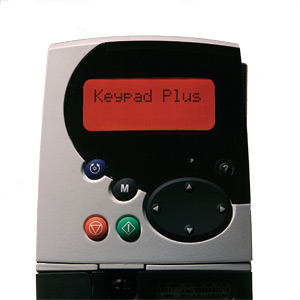

Keypads

Optional keypads, remote keypads, operator interface terminals enable greater control and oversight of your drives and applications. Our unique open communications platform allows drive-to-drive, drive-to-PLC, drive-to- I/O, and drive-to-operator interface communication. HMI offerings extend from 2-line terminals to color-touch screen panels.
