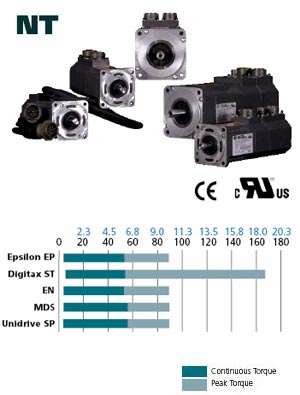

The NT Motor is an economical, high performance motor manufactured with patented technology to maximize torque and minimize size. The NT motor uses powerful Neodymium magnets and is manufactured with a segmented core to maximize stator efficiency and further reduce size. The NT motor has a very low inertia for applications that demand high Accel and cycle rates. When used with the “Motion Made Easy” Drives the NT line produces from 7 lb-in (0.79 Nm) to 55 lb-in (6.3 Nm) of continuous torque. NT motors are available in English (NEMA 23 or 34) or Metric (IEC- 72-1) flanges, with or without brakes. The standard encoder resolution is 2048 lines per rev. NT motors can be ordered with MS style connectors, 1 meter Flying Leads or 1 meter
Flying Leads with MS connectors. All models are rated IP 65.

Benefits

• Very low inertia for applications that demand high Accel and cycle rates
• English (NEMA 23 or 34) or Metric (IEC- 72-1) flanges
• With or without holding brakes
• The standard encoder resolution is 2048 lines per rev.
• NT motors can be ordered with MS style connectors, 1 meter Flying Leads or
  1 meter Flying Leads with MS connectors or Direct Connect*
• All models are rated IP65 - with IP67 optional
• Medium inertia options
• White epoxy food grade motor option

* DIRECT CONNECT - NO ADDITIONAL CABLES REQUIRED!
NT motors are now available with direct motor to drive connector terminations for Epsilon EP,
Unidrive SP and Digitax ST servo drives - up to 20 ft cable length.

****  Note: these apply to the drive module only.
