TORQUEMASTER™ BNL
2300 SERIES
Brushless
Servo Motors
| Series
2300, 325 VDC brushless servo motor -- provides fast response, accurate
control and high torque-to-inertia ratios |
- Trouble-free brushless
construction
- Continuous torque ratings up
to 140 oz-in --with speeds up to 10,000 RPM

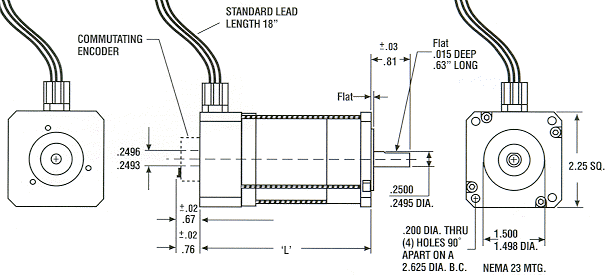

- NEMA 23 mounting features
standard
- IEC 72 Metric specifications
available
|
Maximum torque per frame size
with high performance Neodymium magnets
Superior low speed
performance
Numerous custom options
available
|
 |
|
Performance
Benefits
Cleveland Motion Controls
specializes in the design of high performance brushless servo motors
that provide efficiency, flexibility of application, and a long
trouble-free service life. Our TORQUEMASTER™
BNL 2300 series is no
exception. With fast response, accurate control and high
torque-to-inertia ratios, you can count on the TORQUEMASTER
4000 Series of servo
motors to provide smooth operation throughout a full speed range. |
|
The BNL
2300 Series delivers
smooth and superior low speed performance, and maximum power ratings
with low thermal resistance for high speed performance. In addition,
with maximum torque in a smaller package, you can count on better
pricing for a better overall value. When integrated with high
performance brushless amplifiers, TORQUEMASTER
BNL 2300 servo motors
provide effective and highly efficient motion control solutions for a
wide range of applications --including factory automation, packaging,
robotics, machine tools, semi-conductor, medical instrumentation, and
more. |
| |
|
|
Design Features
TORQUEMASTER
BNL 2300 Series servo
motors are rated from 50 oz-in to 140 oz-in with speeds and torque
stability up to 10,000 RPM --accommodating DC bus voltage up to 325
volts. They utilize the latest in high performance Neodymium permanent
magnet technology and are available in several standard windings (as
well as custom windings) to meet you most demanding applications. |
|
Each servo motor in the BNL
2300 Series is ruggedly
designed and manufactured for reliable performance. To satisfy many
different applications, TORQUEMASTER
2300 Series motors are
manufactured to NEMA/IEC specifications. TORQUEMASTER
BNL 2300 Series servo
motors come standard with hall sensor, encoders, commutating encoders,
brakes, gearheads and other options available. |
|
