TORQUEMASTER™ BMR
4000 SERIES
Brushless
Servo Motors
| Series
4000, 350 VDC brushless servo motor -- provides fast response, accurate
control and high torque-to-inertia ratios |
- Trouble-free brushless
construction
- Continuous torque ratings up
to 67 lb-in --with speeds up to 10,000 RPM
- UL Recognition
- IP65 Sealing available
- NEMA mounting features
available
|
IEC 72 Metric specifications
available
Maximum torque per frame size
with high performance Neodymium magnets
Superior low speed
performance
Numerous custom available
|
| |
|
|
|
|
 |
|
Performance
Benefits
Cleveland Motion Controls
specializes in the design of high performance brushless servo motors
that provide efficiency, flexibility of application, and a long
trouble-free service life. Our TORQUEMASTER™
BMR 4000 series is no
exception. With fast response, accurate control and high
torque-to-inertia ratios, you can count on the TORQUEMASTER
4000 Series of servo
motors to provide smooth operation throughout a full speed range. |
|
The BMR
4000 Series delivers
smooth and superior low speed performance, and maximum power ratings
with low thermal resistance for high speed performance. In addition,
with maximum torque in a smaller package, you can count on better
pricing for a better overall value. When integrated with high
performance brushless amplifiers, TORQUEMASTER
BMR 4000 servo motors
provide effective and highly efficient motion control solutions for a
wide range of applications --including factory automation, packaging,
robotics, machine tools, semi-conductor, medical instrumentation, and
more. |
| |
|
|
|
|
Design Features
TORQUEMASTER
BMR 4000 Series servo
motors are rated from 27 lb-in to 67 lb-in with speeds and torque
stability up to 10,000 RPM --accommodating DC bus voltage up to 350
volts. They utilize the latest in high performance Neodymium permanent
magnet technology and are available in several standard windings to meet
you most demanding applications. |
|
Each servo motor in the TORQUEMASTER
4000 Series is ruggedly
designed and manufactured for reliable performance. To satisfy many
different applications, TORQUEMASTER
4000 Series motors are

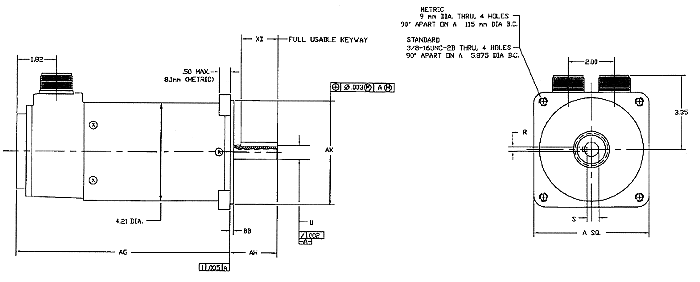

manufactured to NEMA/IEC specifications. For severe duty environments,
the BMR design is also available with IP65 sealing. TORQUEMASTER
BMR 4000 Series servo
motors come standard with hall sensor or resolver commutation. Encoders,
brakes, gearheads and other options are available. |
| |
|
|
- UL recognition
- Continuous torque range of 27
lb-in to 67 lb-in
- Neodymium magnet construction
- More torque per smaller frame
size
|
IP65 Sealing available
Speeds to 10,000 RPM
High torque-to-inertia ratios
|
|
