Geflex

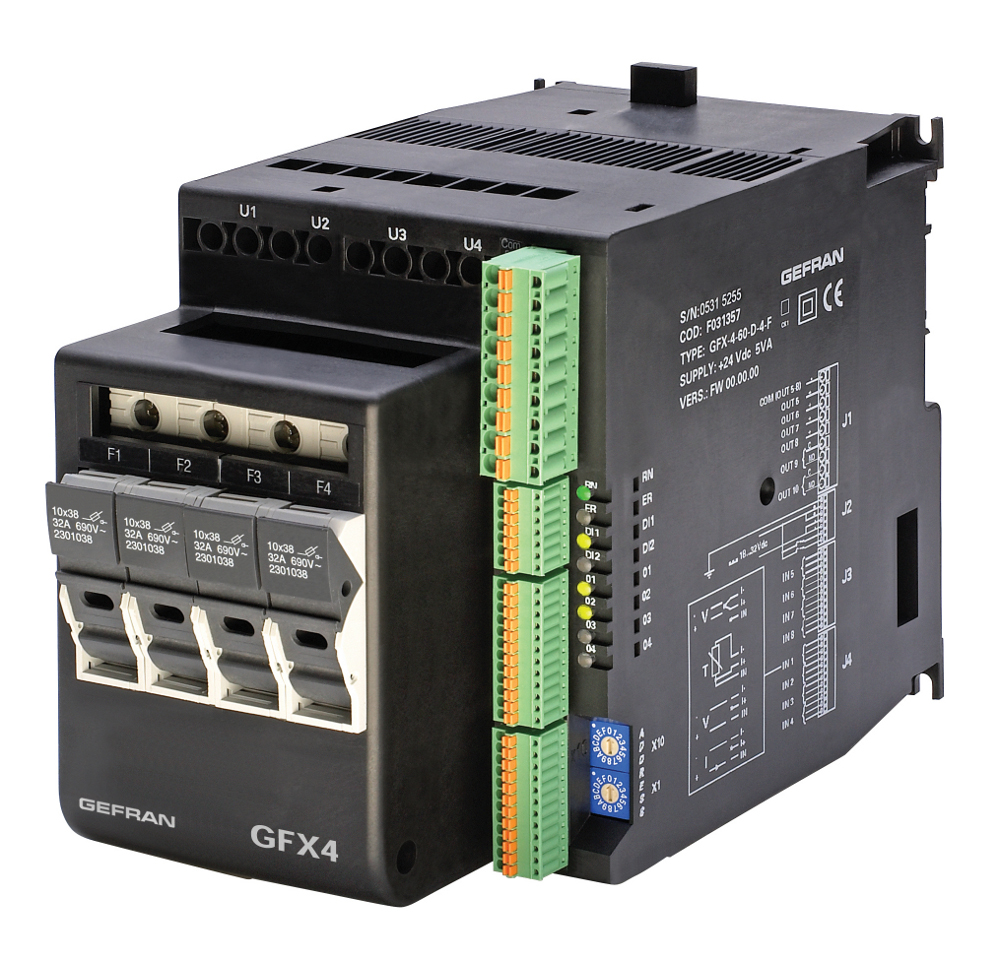

Four Loops, (GFX-4)
- Controller
- 30, 60, 80kW solid state relay
- Current transformers (one or four)
- Fuses-holder (option)
- 4 universal main inputs
- 4 heat/cool independent PID
- 4 main output internally wired to the SSR
- 4 auxiliary analog inputs (option)
- 4 configurable output (option):
relay / logic / TRIAC / continuous
- 2 configurable relay alarm output
- 2 digital inputs
- Standard digital communication:
Modbus RTU
- Optional Fieldbus communication:
Profibus DP, CANopen, DeviceNet,
Modbus RTU, Ethernet Modbus TCP
- DIN rail or panel mounting
|
|
Geflex
25-120 Amp, (GFX-M1/S1/E1)
- MASTER - independent temperature control and
communication unit
SLAVE - independent temperature control unit
EXPANSION - for three-phase loads
- SSR (Solid State Relay) zero crossing
- Rated voltage: 480Vac rms, 50-50Hz
- Rated current (AC1): 25A, 40A, 60A, 90A, 120A
- Protection: IP20
- Installation: DIN bar and panel
- Universal temperature input, accuracy 0.2%
- Configurable digital input
- Logic output or "cooling" relay
- Load current detection with integrated CT
- Heat/cool PID, selection of cooling fluid, self-tuning,
auto-tuning, soft-start
- 4 generic alarms, LBA and HB alarms
- 2 configurable relay outputs
- Serial: RS485 optically isolated "Modbus RTU"
serial protocol
- Field bus: PROFIBUS DP, CANopen
|
|
Geflex
Multifunction 5-15 Amp, (GFX-M2/S2/E2)
- Three versions:
MASTER - independent temperature control and communication unit
SLAVE - independent temperature control unit
EXPANSION - for three-phase loads
- Protection: IP20
- Universal temperature input, accuracy 0.2%
- Configurable digital input
- Logic output or "cooling" relay
- Load current detection with integrated Current and
Voltage Transformer
- Heat/cool PID, selection of cooling fluid, self-tuning,
auto-tuning "one-shot", soft-start
- 4 generic alarms, LBA and HB alarms
- 2 configurable relay outputs
- Field bus for Master Standard:
"Modbus RTU" with Serial 485 optically
Option: "PROFIBUS DP", "CANopen"
|
Geflex
Valves, (GFX-M2-V/S2-V)
- Two versions:
MASTER - independent temperature control and communication unit
SLAVE - independent temperature control unit
- Protection: IP20
- Universal temperature input, accuracy 0.2%
- Configurable digital input
- Module with double relay with valve open/close function
- Logic output or "cooling" relay
- Heat/cool PID, selection of cooling fluid, self-tuning,
auto-tuning, soft-start
- 4 generic alarms, LBA alarm
- 2 configurable relay outputs
- Field bus for Master Standard:
"Modbus RTU" with Serial 485 optically
Option: "PROFIBUS DP", "CANopen"
|
Geflex
OP, (GFX-OP)
- Triple Display
- 6 function keys
- 14 LEDs
- Power supply 24Vdc
- Built-in memory to load/download Geflex configuration up
to 10 units
|
