| MDM-5000
High Energy Brushless Servo Motor |
 |
|
High Power Density Brushless Servo
Motor
Torque Systems new high energy brushless servomotor brings the
highest available torque density in a platform that is easily
customized to fit your application. The excellent winding density
of a proprietary segmented lamination technology combined with a
neodymium magnet array provides for maximum power output - up to
14 Nm (124 lb-in ) continuous stall torque in a compact 110 mm
(NEMA 42) package.
MDM-5000 Quick-Ship Program
The Quick Ship Program is designed to provide short lead times
for our new high energy brushless servo motors. Certain models
are available to ship within 5 days when ordered directly through
the factory, or for faster delivery, contact Microcon
Technologies Inc.
MDM-5000 Comparison Chart
|
|
Mm
|
|
|
| MDM-5000
High Energy Brushless Servo Motor |

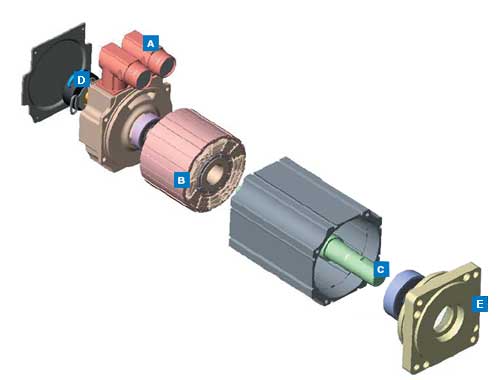

Typical Standard Integration Options:
- Custom Connectors, Connector Locations, Cabling
- Multiple Standard Winding Configs, Matched Windings, Thermostats
- Standard & Custom, Shaft Configurations
- Hall Sensors, Standard and Custom Encoders, Resolvers,
Tachometers, Brakes
- Standard Flange Mounting, NEMA Mounting, IEC Mounting, Multiple
Gearhead Options
Typical Custom Engineered Options:
- Extended Ambient Temperature Ratings
- Custom Winding Configurations
- Special Electromagnetic Design Platforms
- Specialized Military Coatings
- Corrosion Resistant Materials
- Food Grade Materials
- Custom Bearings
- Witness Testing
- IP 67 Sealing
|
|
| MDM-5000
High Energy Brushless Servo Motor |
MDM-5000 Quick-Ship Program
This program is designed to provide short lead times for small lot
quantities or samples. The MDM-5000 models shown below are shipped
typically within 5-10 days when ordered directly through the factory.
For faster delivery, contact our customer service department.
If you need more information about our part numbers, review MDM-5000
Ordering Information.
| Size |
Part
Number |
Description |
Drawing |
| 60mm |
T0601T0006 |
NEMA, .375 shaft,
flying leads, 1000 line encoder |
33011-013 |
| 60mm |
T0602T0006 |
NEMA, .375 shaft, flying leads, 1000
line encoder |
33011-014 |
| 60mm |
T0603T0006 |
NEMA, .375 shaft,
flying leads, 1000 line encoder |
33011-015 |
| 60mm |
T0604T0006 |
NEMA, .375 shaft, flying leads, 1000
line encoder |
33011-015 |
| 60mm |
T0601T0005 |
NEMA, .375 shaft,
flying leads, 2000 line encoder |
33011-013 |
| 60mm |
T0602T0005 |
NEMA, .375 shaft, flying leads, 2000
line encoder |
33011-014 |
| 60mm |
T0603T0005 |
NEMA, .375 shaft,
flying leads, 2000 line encoder |
33011-015 |
| 60mm |
T0604T0005 |
NEMA, .375 shaft, flying leads, 2000
line encoder |
33011-015 |
| 60mm |
T0601T0002 |
IEC, flying leads,
1000 line encoder |
33018-013 |
| 60mm |
T0602T0002 |
IEC, flying leads, 1000 line encoder |
33018-014 |
| 60mm |
T0603T0002 |
IEC, flying leads,
1000 line encoder |
33018-015 |
| 60mm |
T0604T0002 |
IEC, flying leads, 1000 line encoder |
33018-016 |
| 60mm |
T0601T0001 |
IEC, flying leads,
2000 line encoder |
33018-013 |
| 60mm |
T0602T0001 |
IEC, flying leads, 2000 line encoder |
33018-014 |
| 60mm |
T0603T0001 |
IEC, flying leads,
2000 line encoder |
33018-015 |
| 60mm |
T0604T0001 |
IEC, flying leads, 2000 line encoder |
33018-016 |
| 85mm |
T0851T0006 |
NEMA, .5 shaft,
flying leads, 1000 line encoder |
31011-013 |
| 85mm |
T0852A0006 |
NEMA, .5 shaft, flying leads, 1000
line encoder |
31011-014 |
| 85mm |
T0853B0006 |
NEMA, .5 shaft,
flying leads, 1000 line encoder |
31011-015 |
| 85mm |
T0854B0006 |
NEMA, .5 shaft, flying leads, 1000
line encoder |
31011-016 |
| 85mm |
T0851T0005 |
NEMA, .5 shaft,
flying leads, 2000 line encoder |
31011-013 |
| 85mm |
T0852A0005 |
NEMA, .5 shaft, flying leads, 2000
line encoder |
31011-014 |
| 85mm |
T0853B0005 |
NEMA, .5 shaft,
flying leads, 2000 line encoder |
31011-015 |
| 85mm |
T0854B0005 |
NEMA, .5 shaft, flying leads, 2000
line encoder |
31011-016 |
| 85mm |
T0851T0004 |
IEC, w/circ
connector, 1000 line encoder |
31011-009 |
| 85mm |
T0852A0004 |
IEC, w/circ connector, 1000 line
encoder |
31011-010 |
| 85mm |
T0853B0004 |
IEC, w/circ
connector, 1000 line encoder |
31011-011 |
| 85mm |
T0854B0004 |
IEC, w/circ connector, 1000 line
encoder |
31011-012 |
| 85mm |
T0851T0003 |
IEC, w/circ
connector, 2000 line encoder |
31011-009 |
| 85mm |
T0852A0003 |
IEC, w/circ connector, 2000 line
encoder |
31011-010 |
| 85mm |
T0853B0003 |
IEC, w/circ
connector, 2000 line encoder |
31011-011 |
| 85mm |
T0854B0003 |
IEC, w/circ connector, 2000 line
encoder |
31011-012 |
| 110mm |
T1101A0004 |
IEC, w/circ
connector, 1000 line encoder |
32018-009 |
| 110mm |
T1102B0004 |
IEC, w/circ connector, 1000 line
encoder |
32018-010 |
| 110mm |
T1103D0004 |
IEC, w/circ
connector, 1000 line encoder |
32018-011 |
| 110mm |
T1104E0004 |
IEC, w/circ connector, 1000 line
encoder |
32018-012 |
| 110mm |
T1101A0003 |
IEC, w/circ
connector, 2000 line encoder |
32018-009 |
| 110mm |
T1102B0003 |
IEC, w/circ connector, 2000 line
encoder |
32018-010 |
| 110mm |
T1103D0003 |
IEC, w/circ
connector, 2000 line encoder |
32018-011 |
| 110mm |
T1104E0003 |
IEC, w/circ connector, 2000 line
encoder |
32018-012 |
|
|
| MDM-5000
Direct Drive Sets (Frameless Kit Motor) |
 |
|
MDM-5000 Direct Drive Sets
( Frameless Motor Kit )
for Frameless Servo Applications
MDM-5000 Direct Drive Sets ( Frameless Kit Motors ) have been
designed to fit into applications where size and weight are important
considerations. Direct Drive technology allows for high servo
stiffness which maximizes rate and position accuracy because there
are no belts, gears or backlash inherent with most other servo
systems.
MDM-5000 Direct Drive Sets are supplied as two pieces; a
cut-core segmented stator and a rotor. The stator is molded in a thin
walled aluminum housing using thermally conductive epoxy, which
provides excellent heat transfer and protects the windings (and
optional integrated Hall board) from damage during installation and
handling. The rotor is coated with a polymer shrink wrap which
protects the magnets from dislodging during operation and also
prevents damage while handling.
MDM-5000 Direct Drive Set Features:
- Brushless design provides high performance with zero maintenance
- Cut-core or Segmented Stator Technology means high efficiency,
high slot-fill windings
- Stator molded in thin wall aluminum housing using thermally
conductive epoxy provides excellent heat transfer, high torque
density and protects the windings and optional Hall board from
damage
- Rotor coated with polymer shrink wrap which protects magnets
from dislodging during operation and prevents
accidental damage while handling.
- High pole count, low cogging, smooth operation
- High torque to inertia ratio ideal for high
acceleration/deceleration mode
with rapid start-stop
- Low electrical time constant for fast response
|
|
MDM-5000 Direct Drive Sets |
