MBL-MBLX
Series
Brushless
Servo Amplifiers
| MBL-MBLX
Series Brushless Servo Amplifiers offer cost-effective, high
performance motion control in a compact package |
- 20 to 180 VDC Supply voltage
- 24 A Peak/12 A Continuous
- Small Size/Low Cost
- Fully Isolated Design (MBLX
model)
- Four Quadrant, Regenerative
Operation
- 20 kHz Switching Frequency
|
+5VDC Supply for Halls and
Encoder
Convenient 120 VAC Single
Supply Operation
Fully protected (Voltage,
Current, Temperature)
Easy to Read LED Fault
Indicators
OEM and End-User Packaging
|
| |
|
 |
|
Design Features
and Performance Benefits
The MBL
and MBLX Series Brushless Servo Amplifiers are MOSFET
pulse-width-modulated (PWM) switching amplifiers. The amplifiers provide

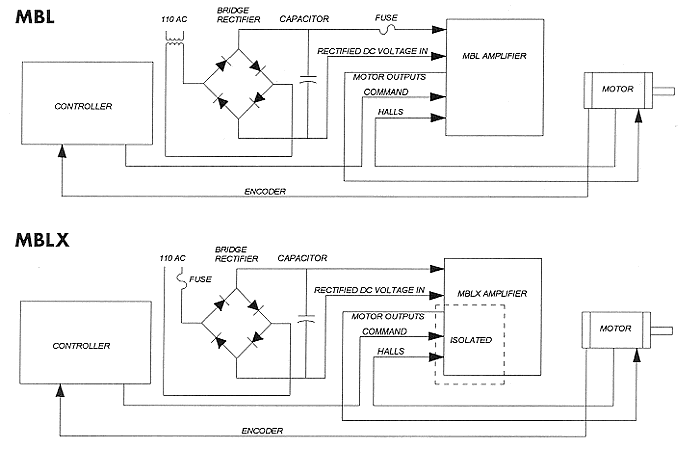

four quadrant current control. The MBLX features
complete isolation of the user interface from the power stage, allowing
transformer-less operation with 120 VAC. Choose the lower cost MBL
drive when using isolated DC power supplies with bus voltages of 20 to
180 VDC. The MBL and MBLX series of
servo amplifiers are protected against over current, over temperature,
and shorted outputs. |
|
Easy to read LED
indicators show fault conditions. The MBL and MBLX
Series Servo Amplifiers use convenient Pluggable screw connectors for
power supply input, motor output and auxiliary inputs, and a DB9 or Pluggable
screw connector on the command input. Loop again and balance
are adjusted with potentiometers. Peak and continuous currents are
selected by Pluggable resistors. Both the MBL and MBLX
Series Servo Amplifiers are available in board level and housed
versions. The MBLX is also available with an integral
power supply, in-rush limiter, and shunt regulator. |
|
Specification
|
MBL50
|
MBL160
|
MBLX
|
| Supply
Voltage |
21-80 VDC |
40-180 VDC |
100-180 VDC |
| Supply
Voltage (HP, AC Input Models) |
|
|
70-130 VAC |
| Continuous
Current |
12 Amps |
12 Amps |
12 Amps |
| Peak
Current |
24 Amps |
24 Amps |
24 Amps |
| Switching
(PWM) Frequency |
20 kHz |
20 kHz |
20 kHz |
| Current
Loop Bandwidth |
2.0 kHz |
2.0 kHz |
2.0 kHz |
| Max.
Command Voltage |
±10 Volts |
±10 Volts |
±10 Volts |
| Max.
Motor Voltage |
92% of DC Supply |
92% of DC Supply |
92% of DC Supply |
| |
Voltage
|
Voltage
|
Voltage
|
| Min
Motor Inductance |
0.5 mH |
1 mH |
1 mH |
| Min.
Electrical Time Constant (L/R) |
0.25ms |
0.25ms |
0.25ms |
| Weight
(Board Level) |
1.5 lbs |
1.5 lbs |
1.5 lbs |
|
