Description
These 30-200 ampere disconnect switches are
complete with fuse clips and line/load lugs, both factory assembled, and
overpacked NEMA 12 handle operators (TDM).
They are listed in UL "Recognized Component
Index" (WHTY2) for mounting in a vertical position, line side up.
They provide 600 volt industrial control electrical
spacing* and are described in UL File E36152. They are suitable for use
on circuits with available currents to 10,000 amperes.
* for units with 600-volt enclosed switch spacing,
select individual components.
|
|
|
Description
The Rotary Cam Switches are a turn for the better
because they eliminate all the unnecessary complexion in selection,
ordering and application.

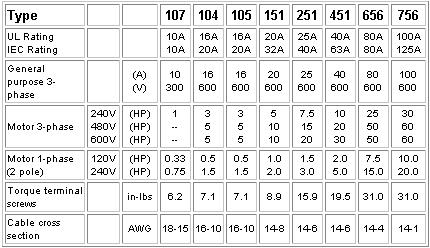

The Rotary CAM switches are UL508 manually
operated horse power rated IEC switches available in 7 amperage
frames from 10A through 100A (125A IEC). Mounting options include
front (flush) mounting, either central or 4 hole, and rear mounting -
on a panel or DIN rail. Switches may be ordered as open or enclosed.
There are 116 standard contact diagrams, 408 standard nameplate in
multiple languages/configurations creating nearly 3,000 standard
combinations of CAM switches. If the customer doesn't see their
required combination they can have one custom built.
Accessories include: lockable rotary handles,
extension shafts, DIN snap on modules, front plates, legend plates,
transparent protecting covers and terminal covers.
Rotary Cam Switches
Features and Benefits
- A single catalog number provides the
desired switch and handle.
- Front and Rear mounting
- Customer configurability
Product Scope
- ON/OFF Mains
- Changeover
- Step Switches 3 through 12 steps with or
without 0 position
- Motor Reversing Switches
- Multiple Speed Switches
- Voltmeter Selector Switches
- Volt-Ammeter Switches
- Ammeter Switches
- Group Switches
|
|
|
|
