Construction:
Anodized aluminum totally sealed
Shaft Speed:
3000 RPM maximum recommended
Shaft
acceleration/Deceleration:
100,000 radians/seconds²
Rotation:
Bi-directional
End Play:
0.001 inches (0.025mm)
Radial Play:
0.001 inches (0.025mm)
Shaft Run
Out (maximum):

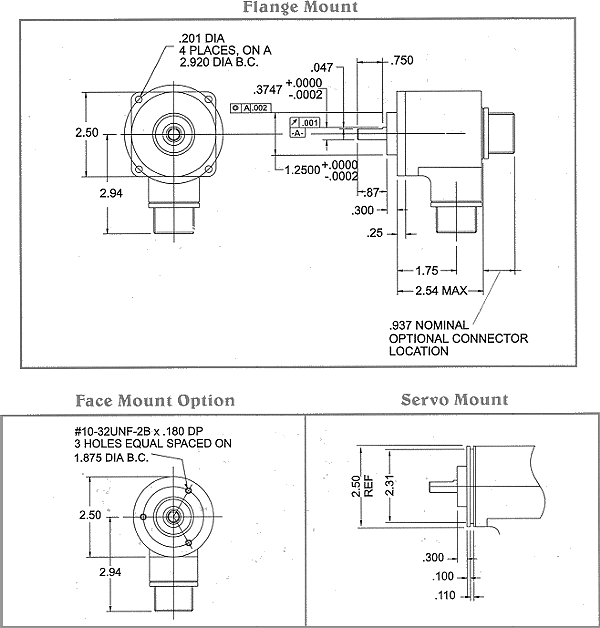

0.001 TIR (with reference to 1.2500 pilot at 1 inch from mounting face)
Bearing
Trust (maximum):
40 lbs. (156N)
Radial
Force (maximum):
35 lbs. (156N)
Moment of
Inertia:
0.4 x 10¯³
oz-in-sec²
(0.28 gm-cm-sec²)
Weight (including connector): 10 oz. (270gr)
Connector:
* Models 00 and 01: MS3102E-16S-1P or equivalent
* Models 02 and 03: MS3102E-18S-1P or equivalent
Bearing:
Instrument quality
Bearing
Lubrication:
Andok "C" Lube
Start
Torque (maximum):
1.25 ounce-inch (8.8 x 10¯³
newton centimeters) |
Encoder Type:
Optical Incremental
Resolution:
1-5400 CPR (cycles per revolution)
Power Input:
+5VDC +/-10% 120 ma (max.)
+12VDC +/-10% 120 ma (max.)
+15VDC +/-10% 120 ma (max.)
Phase
Relationship:
A leads B by 90 degrees +/-18 degrees electrical CW rotation
Symmetry:
180 degrees +/- 9 degrees
Frequency
Response:
200kHz or 3000 RPM, whichever occurs first
Drive
Capability:
CMOS AND TTL compatible
Output Mode:
5V, Power MOSFET (standard), 8830 differential line driver (-03 option);
12V & 15V, Power MOSFET (standard), 8830 differential line driver
(-03 option); 12V & 15V, Power MOSFET (standard), MM88C30
differential line driver (-03 option)
Accuracy:
* Pulse to Adjacent Pulse: +/-6 arc seconds
* Pulse to Any Other Pulse: +/-3 arc minutes
Illumination
Source:
Single Infrared Emitting Diode (IRLED) Gallium Aluminum
Arsenide (GaA1As) |
