DataTech DT20
Low Cost, Heavy Duty Industrial Encoder



Rotary Incremental Encoder: Shaft Type DT20   The new Data Tech DT20 is the latest addition to the Optecom line. It is designed for applications where a rugged industrial encoder is required at a low price. The DT20 will withstand the needs of a machine tool or robotics application yet it is priced to be used in many less harsh applications as well. This unit is physically interchangeable with competitors models, but with some exceptional features.

We have mechanically captured and pre-loaded the bearings to insure they will not move under load, as can be the case with glued in bearings. Excellent bearing life with low starting torque and sealed to IP65 standards. Resolution up to 2500 lines.

The DT20 is available up to 24 volts with an operating frequency of up to 200 kHz. Zero markets and line drivers available operating to the full frequency. RS422 compatible with 2631 series output mode.

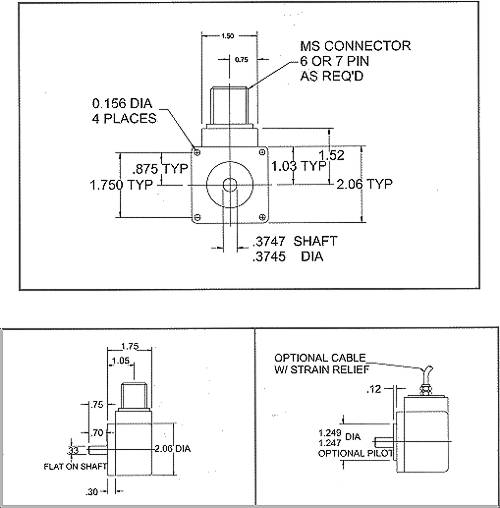

MECHANICAL SPECIFICATIONS ELECTRICAL SPECIFICATIONS
Cover: Anodized aluminum, sealed to IP65 standard
Bearings: Sealed, instrument quality
Operating Speed: 3000 RPM or 200 kHz, whichever occurs first
Slew Speed: 8000 RPM maximum
End Play: 0.001" maximum
Shaft Loading Max: Axial 80 lbs., Radial 0.25" from face
Shaft Rotation: Bi-directional
Starting Torque: 1.25 oz-in
Moment of Inertia: 0.4 x 10¯³ oz-in-sec² (0.28 gm-cm-sec²)
Weight: 10 oz. (270G)
Radial Play: 0.001" maximum		 Encoder Type: Optical Incremental
Resolution: 1-2500 CPR (cycles per revolution)
Power Input: 3.3 to 24 VDC (specify)
Quadrature: degrees electrical clockwise rotation
Symmetry: 180 degrees +/- 9 degrees
Frequency Response: 200kHz maximum
Drive Capability: RS422 compatible
Output Mode: 2631 Series
Marker: Ungated, full cycle
Accuracy:
* Pulse to Adjacent Pulse: +/-6 arc seconds
* Pulse to Any Other Pulse: +/-3 arc minutes
Illumination Source: Single Infrared Emitting Diode (IRLED) Gallium Aluminum Arsenide (GaA1As)
