High performance motion controller, providing one, two or three-axis of precise servo motion control. Provides up to three axes of precision servo motion control Easily installed and maintained High performance closed-loop (1ms update rate for three axis) Ample credit card memory interface provides for easy storage of programs, complete motion profiles or teach data. Accommodates an easy-to-read LCD display and keypad Flexible operation-- stand-alone or through a host computer Supports basic Motion Programming language Includes Comprehensive development software for IBM PCs

Performance Benefits Cleveland Motion Controls specializes in the design and application of high performance motion controllers. Aximate/C is the ideal controller for high performance servo motion control and is designed to meet the requirements of machine builders in packaging, materials handling and general automation. A single compact box functions as a complete machine controller; providing motion control, opto-isolated input/output, and a user friendly message display by way of the external operator panel. The panel mount design allows easy integration into systems, saving time over rack mount controllers.

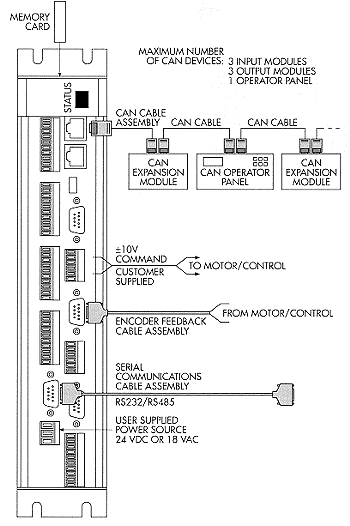

Design Features The Aximate/C Motion Controller, with opto-isolated I/O and power supply, is designed to provide one, two or three-axis of servo motion control. It incorporates numerous other built-in design features: End mounted unit with screw terminations for ease of commissioning. High performance closed-loop servo or vector control with four-term PIVF controller. 64K or 128K credit card memory interface for program storage, motion profiles or teach data. LCD display and keypad driver for up to 64 keys in 8x8 matrix using CANbus interface. 18VAC input or 24VDC, on board power supply providing isolated 24V output for machine I/O and 5V stabilized output for incremental encoders. Stand-alone operation or controlled by host computer over RS232/485 link, up to 16 units on RS485 multi-drop link.

Program Development Tools Aximate/C is supplied with comprehensive program development software for IBM PCs. This includes cTerm, a terminal emulator and protected communications debugger.

Motion Programming Language Structured Basic-style motion control language. Three axis linear and two axis circulator interpolation. Trapezoidal or 'S' ramp velocity profiles. Master/slave operation with software gearbox and software cams. In-feed, registration and phasing machine control. Protected multi-drop communications using ANSI x3.28 data communications protocol. 28K bytes non-volatile memory for programs & data. On board program editor. Aximate/C Mechanical Data Dimensions: 12.2" high x 2.32" wide x 11.0" deep Mounting configuration: End mount beside servo drive. Connectors: Plug in screw terminations for all signals except Encoders (9way D-type female) and RS232 (9way D-type male). Operating temperature: 0-50C; extended temperature spec available on request. Operator Display Panel 20 character by a four-line back-lit LCD display. Shielded twisted pair cable connection to controller via CANbus, maximum cable run 1600-Ft (500M). 27 keys, X, Y, Z cursor keys, numeric keypad and 6 user definable function keys. 19" rack compatible (3U 128mm high by 42HP 213mm wide).
