30mm NEMA

800T Enclosures

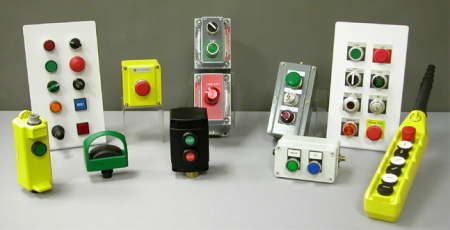

The industry standard. These durable enclosures are excellent choices for tough industrial environments. Available in die-cast aluminum and sheet metal, we offer surface mount, flush mount, and pendant station configurations. 800T enclosures are UL/CSA approved for the ratings listed below.

Die Cast Type 4/13 watertight/oil tight, when assembled with 800T operators Available in 1...16 hole configurations Oven-baked gray enamel finish
	Pendant Stations Heavy-gauge sheet steel construction Type 13 oil tight when assembled with 800T operators Includes cable anchor and bushing for ease of wiring and installation Available in 2...10 hole configurations Optional wobble stick or mushroom head E-Stop in bottom of enclosure
Sheet Metal Type 13 Oil tight, when assembled with 800T operators Available in 6...25 hole configurations Oven-baked gray enamel finish

The Complete Finger Safe Push Button Solution

A complete line of Allen-Bradley finger safe components for use with the Bulletin 800T/H family of push buttons are being introduced. These new finger safe components, including Contact Blocks, Full Voltage Modules, Transformers and Potentiometers, improve personal safety by reducing the possibility of accidental contact with terminal voltage.

• Securely attached covers that meet IP2X finger safe standards
• Terminal screw retention to prevent loss of screws
• Each terminal accepts two 12-gauge wires
• Same electrical/mechanical ratings as existing components, respectively
• Available completely assembled onto 800TC/800HC push button operators
