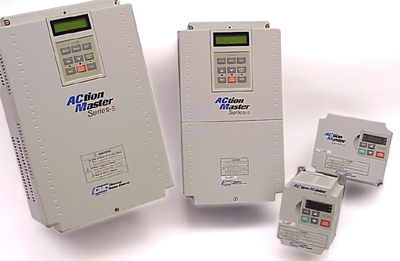

ACtionMaster AC Drive

The ACtion Master Series Drives , from CMC, is a single range of AC drive family (fractional to 500 HP) designed to meet the requirements of all variable speed applications from simple single motor speed control through to the most sophisticated integrated multi-drive systems. The heart of the ACtion Master is a highly advanced 32-bit microprocessor-based motor control model. This provides an exceptional dynamic performance platform to which can be added a host of communications and control options, enabling users to tailor these drives to meet exact requirements.

SERIES G5
0.5 to 5 HP
230v/460v

Standard Features
o kW / Voltage Ratings:
o 0.37 ~ 3.7 kW (0.5 - 5 HP) 200-230VAC, 3phase
o 0.37 ~ 3.7 kW (0.5 - 5 HP) 380-460VAC, 3phase
o Enclosure: IP00 ~ IP20
o Inverter Type: PWM with IGBT
o Control Method: Volts / Hertz with Space Vector Technology
o Built-in RS-485Built-in ModBus-RTU Built-in PID control
o Removable keypad (Able to read & write parameter)
o 150% torque at 0.5Hz
o Trip-free operation algorithm
o 8 preset speeds
o 3 jump (skip) frequencies
o 3 Multi-functional inputs
o 1 Multi-functional output
o Analog output (0~12V)
o PNP and NPN dual directional signals
o Speed search
o 3 wire operation
o 1 to 10 kHz carrier frequency
o Built-in Braking transistor
o Manual/Auto torque boost
o Drive-view™ Operating Software (Windows®-based)

Options
o Cable for Remote Keypad Operations(2,3 and 5 meters)
o DIN rail base for easy installation

Application
o Converting                                  o Commercial washing machinery
o Fan                                             o Grinder
o Pump                                          o Textile machinery
o Food processing machinery         o Material handling machinery
o Electric shutter                            o Centrifuge
o Dryer                                          o Elevator door
o Running machinery                      o Tooling machinery                                       o Overheat

Conformity to Global Standards
o UL and cUL listed for North America
o CE marked for Europe
o Quality process controlled by ISO9001, ISO14000

The ACtion Master AC Drives are Currently a discontinued product. Support is still available.
